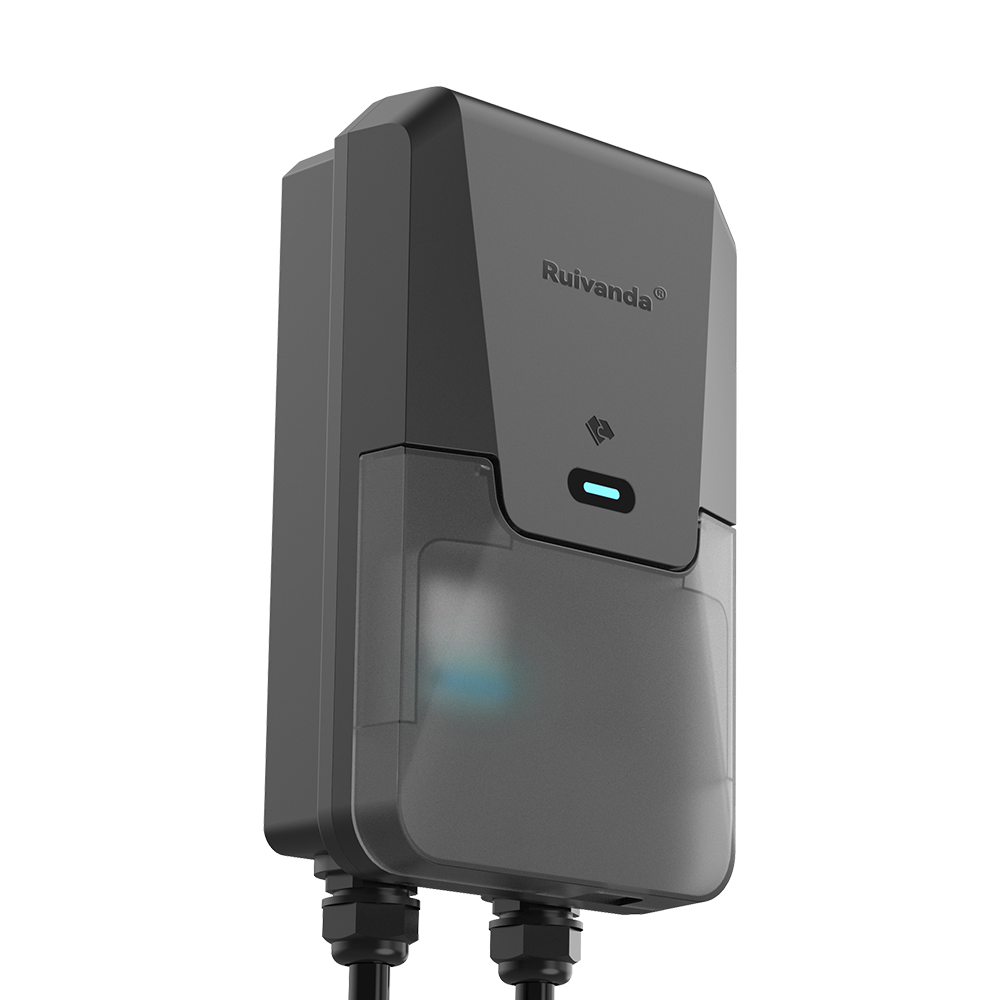

7KW
A Multi-Purpose Electrical Device
Compliant with Industry's Latest Standars
Multi-Layered Protection Design
·Compliant with Latest Industry Standards
·Built-in Type A+DC 6mA Leakage Protection
·Multi-Layer Safety Protection,12-Year Zero Incident Record.

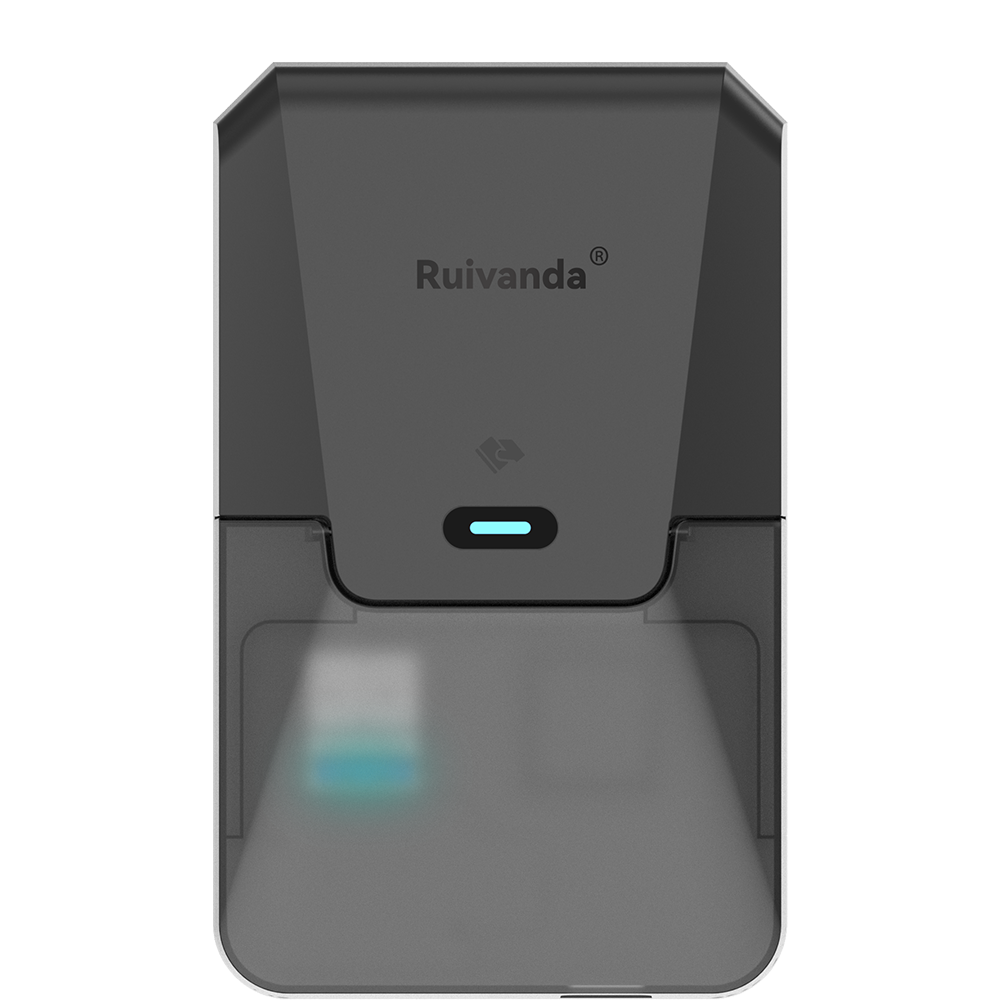

The screen with water light,
blue not charged, green charging, red abnormal.
Support use the RFID card to scan charging, support use charging connector , Webpage Control,
and remote control.
Waterproof level lP65，
it has layers of protection functions such as short circuit, overload, overvoltage, undervoltage,
leakage, lightning protection, unplugging and plugging, which are safer and more reliable.
Technical Features
| Model | |
| PEV-7KW08 | |
| Electrical Parameters | |
| Input Voltage | 220VAC±20%,50/60Hz,1-phase |
| Pre-charge Output Current | 32A MAX |
| Standby Power Consumption | <5W |
| RCD | Type A |
| Implementation Standard | GB/T 18487.1-2015 |
| Charging Interface | GB/T 20234.1-2023 |
| Human-Machine Interface | _ED |
| Communication Method | BLE 5.4 High-Performance 2.4G |

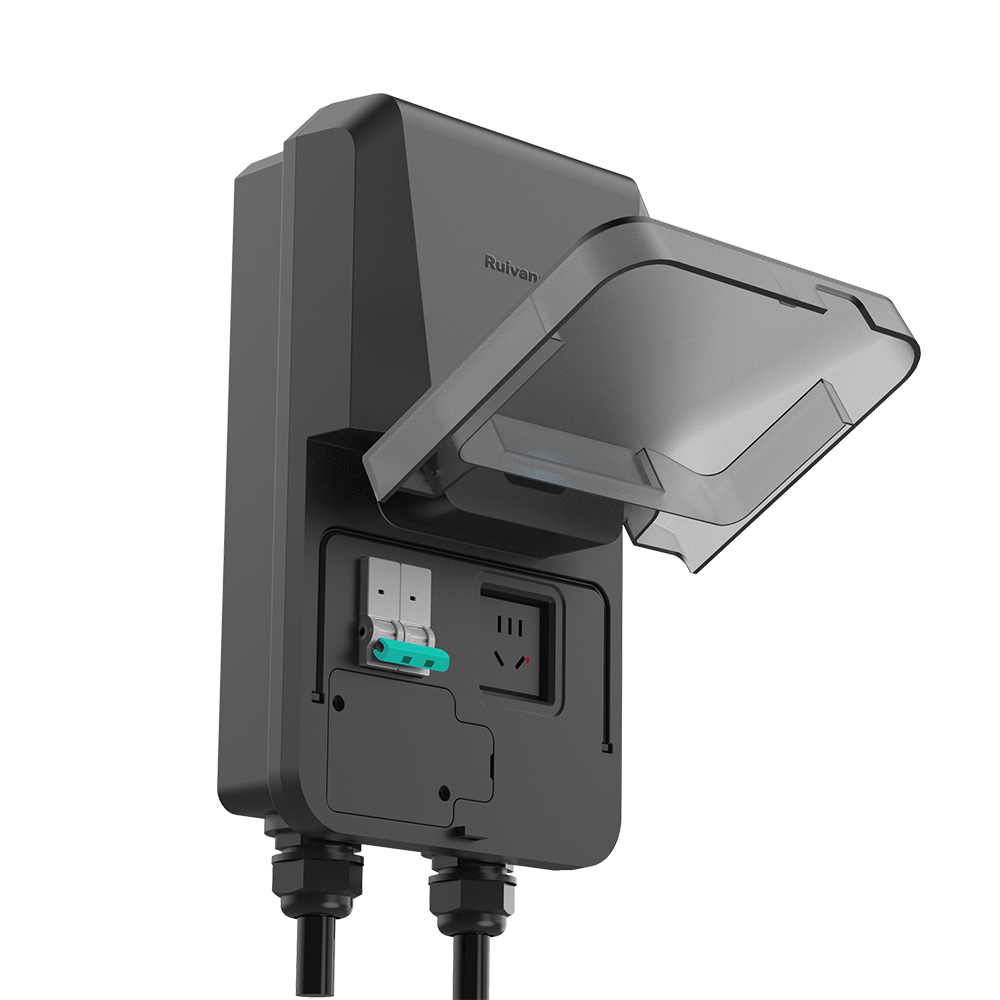

| Built-in Circuit Breaker | 2P 63A Miniature Circuit Breaker (Down-in and Up-out Version) |
| Maximum Allowable Current of Built-in Socket | <8A (Automatic Power-off Without Current for 1 Minute) |
| Startup Method | Card Swiping/APP/Plug and Charge/Bluetooth Touchless Startup |
| Appearance Parameters | |
| Dimensions | 310*190*104mm(L*W*H) |
| Shell Material | PC Material Body |

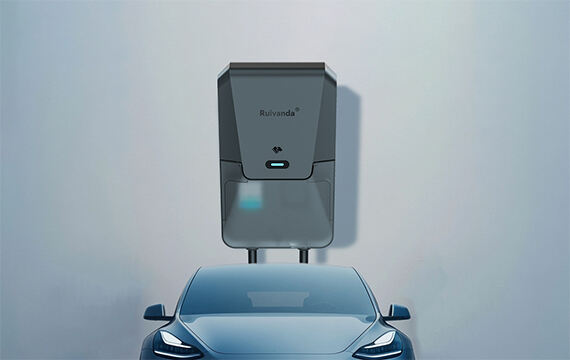

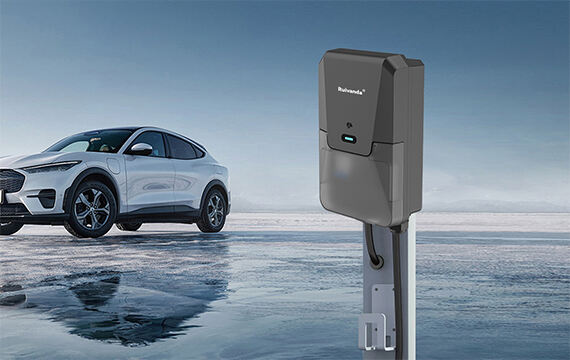

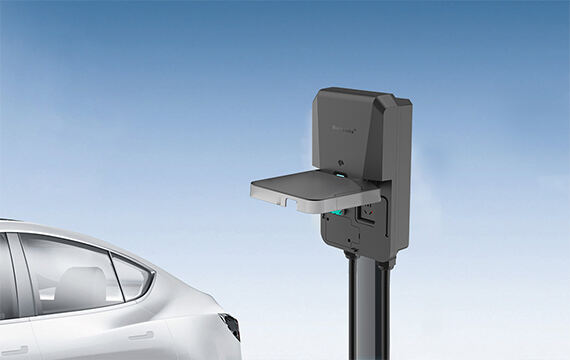

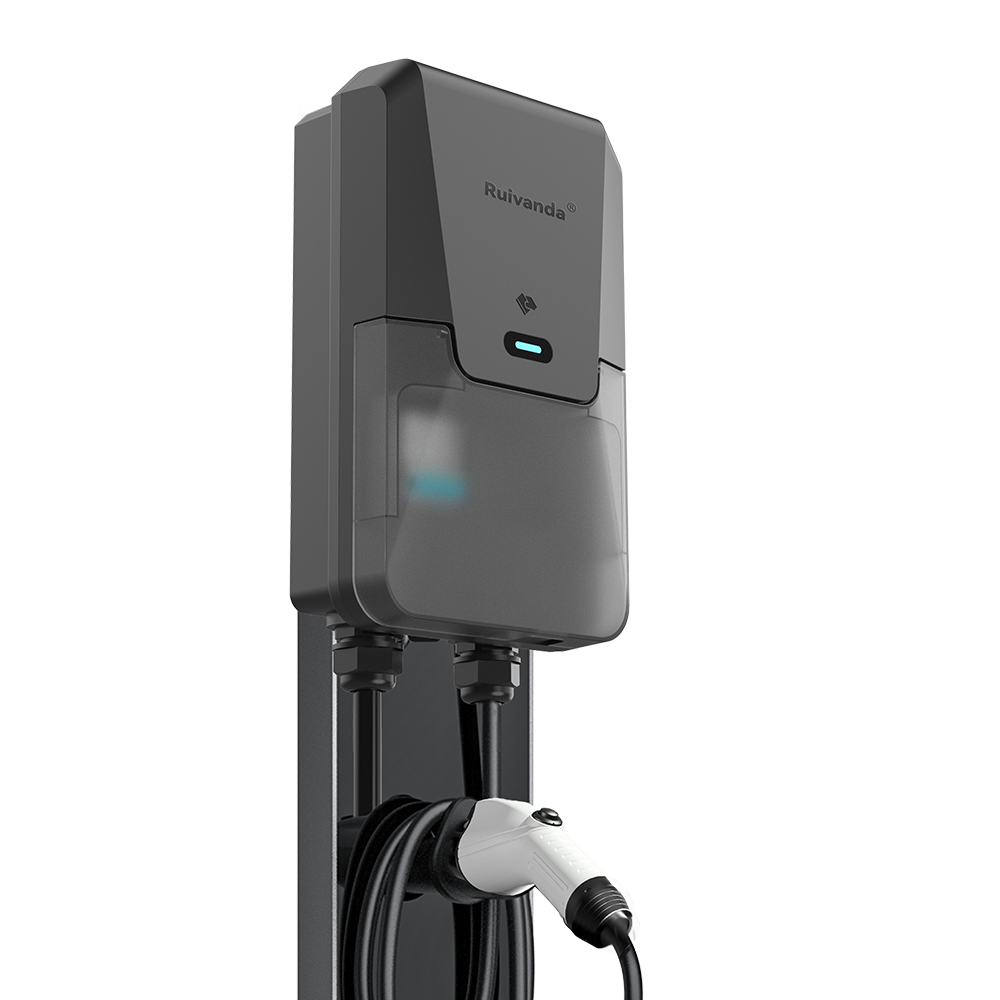

| Installation Method | Wall-mounted/Column-mounted |
| Cable Length | 4m (Including Connect Head) |
| Protection Level | IP65 |
| Operating Temperature | -30°℃~+50℃ |
| Operating Humidity | <95%RH |
| Operating Altitude | <2000m |
| Cooling Method | Natural Cooling |
| Safety Protection | |
| Overvoltage Protection | Stop charging if the voltage remains above 270±3V for 5 seconds |
| Undervoltage Protection | Stop charging if the voltage remains below 85±3V for 5 seconds |
| Over-temperature Detection | Reduce current to 6A when the enclosure temperature is |
| above 75℃, resume when it falls to below 70C, and stop charging if it is above 85℃ | |
| Overcurrent Detection | Stop charging if the current exceeds 35.2A for 5seconds |
| Emergency Stop Protection | |
| Leakage Protection | |
| Grounding Detection | |
| CP Abnormality Detection | |
